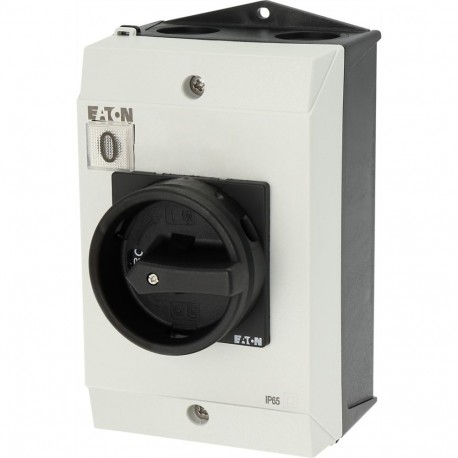

EATON - MOELLER T3-2-2092CH/I2/SVB-SI-CHD-230V T3-2-2092CH/I2/SVB-SI-CHD-230V 172956 Y7-172956 EATON ELECTRIC SUVA safety switches, 32 A, Emergency-Stop fu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-2092CH/I2/SVB-SI-CHD-230V 172956 Y7-172956 EATON ELECTRIC SUVA safety switches, 32 A, Emergency-Stop fu..

T3-2-2092CH/I2/SVB-SI-CHD-230V

172956

Y7-172956

EATON - MOELLER

1 Pcs.

SUVA safety switches, 32 A, Emergency-Stop function, Lockable in position 0 with cover interlock, surface mounting, with warning label „safety switch” T3-2-2092CH/I2/SVB-SI-CHD-230V Eaton Moeller® series T3 SUVA safety switches, T3, 32 A, surface mounting, 2 N/O, 2 N/C, Emergency switching off function, with warning label „safety switch”, Indicator light 230 V SUVA safety switch, Product range: SUVA safety switches, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: with warning label „safety switch”, Information about equipment supplied: Indicator light 230 V, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T3-2-2092CH/I2/SVB-SI-CHD-230V Eaton Moeller SUVA safety switch provides reliable emergency stopping capabilities for rotating machinery and industrial equipment. Safety switches protect operators by cutting power quickly during hazardous situations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 SUVA safety switch
Catalog Number
172956
Model Code
T3-2-2092CH/I2/SVB-SI-CHD-230V
EAN
4015081695447
Product Length/Depth
185 mm
Product Height
124 mm
Product Width
108 mm
Product Weight
0.5 kg
Certifications
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
