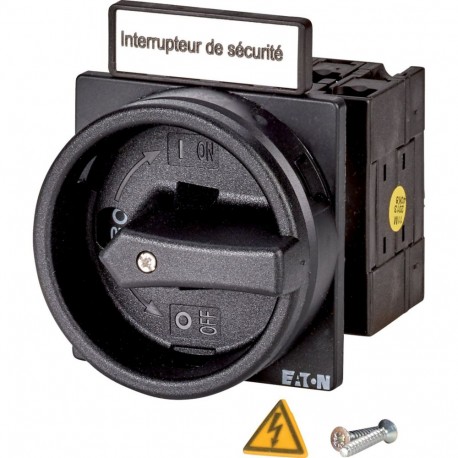

EATON - MOELLER T3-2-2092CH/EA/SVB-SW-SI-CHF T3-2-2092CH/EA/SVB-SW-SI-CHF 172965 Y7-172965 EATON ELECTRIC SUVA safety switches, 32 A, STOP function, Lock.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-2092CH/EA/SVB-SW-SI-CHF 172965 Y7-172965 EATON ELECTRIC SUVA safety switches, 32 A, STOP function, Lock..

T3-2-2092CH/EA/SVB-SW-SI-CHF

172965

Y7-172965

EATON - MOELLER

1 Pcs.

SUVA safety switches, 32 A, STOP function, Lockable in the 0 (Off) position, flush mounting, with warning label „Interrupteur de sécurité“ T3-2-2092CH/EA/SVB-SW-SI-CHF Eaton Moeller® series T3 SUVA safety switches, T3, 32 A, flush mounting, 2 N/O, 2 N/C, STOP function, with warning label „Interrupteur de sécurité“ SUVA safety switch, Product range: SUVA safety switches, Part group reference: T3, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with warning label „Interrupteur de sécurité“, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This T3-2-2092CH/EA/SVB-SW-SI-CHF 172965 Y7-172965 Eaton Electric SUVA safety switches, 32 A, STOP function, lock.. functions as a dedicated safety control device designed to interrupt power and prevent unintended equipment operation. Such safety switches are standard additions to manufacturing machinery to protect operators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 SUVA safety switch
Catalog Number
172965
Model Code
T3-2-2092CH/EA/SVB-SW-SI-CHF
EAN
4015081695539
Product Length/Depth
127 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.27 kg
Certifications
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
