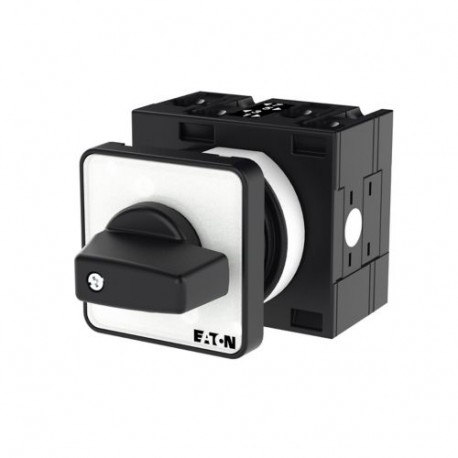

EATON - MOELLER T3-2-171/E T3-2-171/E 018231 Y7-18231 EATON ELECTRIC Step switches, Contacts: 3, 32 A, front plate: 0-3, 45 °, maintain.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-171/E 018231 Y7-18231 EATON ELECTRIC Step switches, Contacts: 3, 32 A, front plate: 0-3, 45 °, maintain..

T3-2-171/E

018231

Y7-18231

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 3, 32 A, front plate: 0-3, 45 °, maintained, flush mounting Switch steps; 3-pole; 32; rating Plate: 0-3; 45 °; Interlock; recessed Mounting Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-3, Design number 171 Step switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-3, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-2-171/E step switch facilitates multi-position circuit routing and sequential control operations within complex industrial machinery. Rotary step switches are broadly utilized in control panels to manually select specific operating modes, speeds, or circuit configurations during operational routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
018231
Model Code
T3-2-171/E
EAN
4015080182313
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CSA File No.: 012528
CSA
CSA-C22.2 No. 94
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
UL 60947-4-1
CE
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL
UL Category Control No.: NLRV
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
