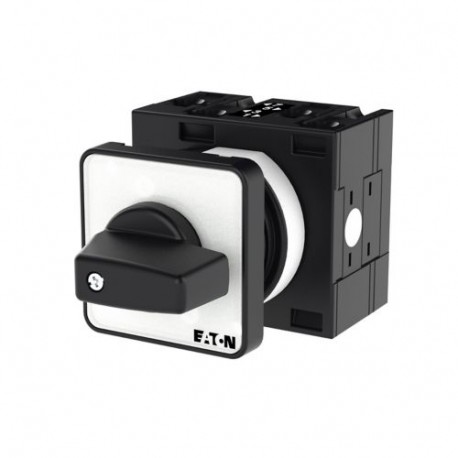

EATON - MOELLER T3-2-113/E T3-2-113/E 017676 Y7-17676 EATON ELECTRIC On-Off switch, 3 pole + 1 N/C, 32 A, 90 °, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-113/E 017676 Y7-17676 EATON ELECTRIC On-Off switch, 3 pole + 1 N/C, 32 A, 90 °, flush mounting

T3-2-113/E

017676

Y7-17676

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + 1 N/C, 32 A, 90 °, flush mounting Disconnect switch ON-OFF; 3-pole + 1 NC; 32; 90 °; Mounting Eaton Moeller® series T3 On-Off switch, T3, 32 A, flush mounting, 2 contact unit(s), 3 pole, 1 N/C, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller On-Off switch (T3-2-113/E) is utilized for manual circuit control and load disconnection across industrial automation machinery and switchgear assemblies. Such panel-mounted components allow operators to safely control power flow to auxiliary sub-systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Version as number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 3
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
017676
Model Code
T3-2-113/E
EAN
4015080176763
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
UL File No.: E36332
IEC/EN 60204
UL Category Control No.: NLRV
CE
CSA
IEC/EN 60947
UL 60947-4-1
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 94
UL
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
