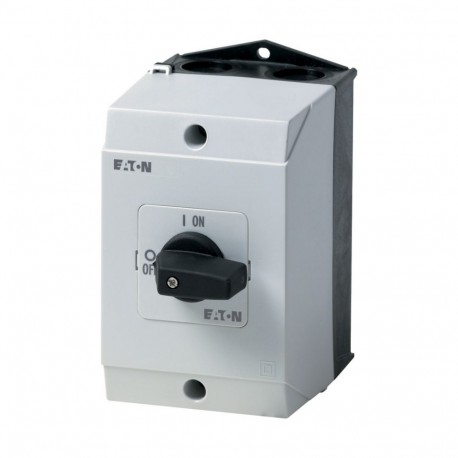

EATON - MOELLER T3-2-10/I2 T3-2-10/I2 222747 Y7-222747 EATON ELECTRIC On-Off switch, 3 pole + N, 32 A, 90 °, surface mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-10/I2 222747 Y7-222747 EATON ELECTRIC On-Off switch, 3 pole + N, 32 A, 90 °, surface mounting

T3-2-10/I2

222747

Y7-222747

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 32 A, 90 °, surface mounting T3-2-10/I2 Eaton Moeller® series T3 On-Off switch, T3, 32 A, surface mounting, 2 contact unit(s), 3 pole + N, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, 3 pole + N, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A T3-2-10/I2 Eaton Moeller On-Off switch, 3 pole + N, 32 A, 90 °, surface mounting provides manual control for machinery and electrical circuits by securely connecting or disconnecting power supply lines. Rotary switches of this type are widely deployed in commercial and industrial control panels to isolate specific loads during maintenance or normal operational routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
222747
Model Code
T3-2-10/I2
EAN
4015082227470
Product Length/Depth
181 mm
Product Height
107 mm
Product Width
100 mm
Product Weight
0.364 kg
Certifications
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-07
CE
UL 60947-4-1
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL Category Control No.: NLRV
IEC/EN 60947-3
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
