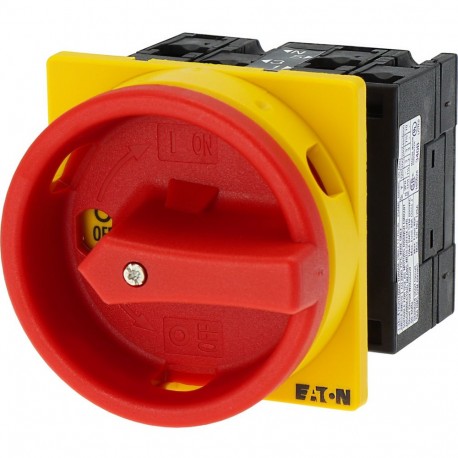

EATON - MOELLER T3-2-10/EA/SVB T3-2-10/EA/SVB 017667 Y7-17667 EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-10/EA/SVB 017667 Y7-17667 EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, 90 °, ..

T3-2-10/EA/SVB

017667

Y7-17667

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N, 32 A, Emergency-Stop function, 90 °, flush mounting General switch; 3-pole + N; 32 To; Handle, Red/Yellow; 90 °; Mounting Eaton Moeller® series T3 Main switch, T3, 32 A, flush mounting, 2 contact unit(s), 3 pole + N, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 3 pole + N, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An EATON ELECTRIC Main switch, 3 pole + N, 32 A, Emergency-Stop function, 90 °, .. acts as a primary control device to safely shut down machinery and protect operators from hazardous electrical energy. Main switches are standard installations in industrial enclosures for regulatory compliance and safety assurance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 4
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
017667
Model Code
T3-2-10/EA/SVB
EAN
4015080176671
Product Length/Depth
116 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.204 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60204
CE
VDE 0660
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
IEC/EN 60947-3
UL
CSA File No.: 012528
UL 60947-4-1
UL File No.: E36332
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
