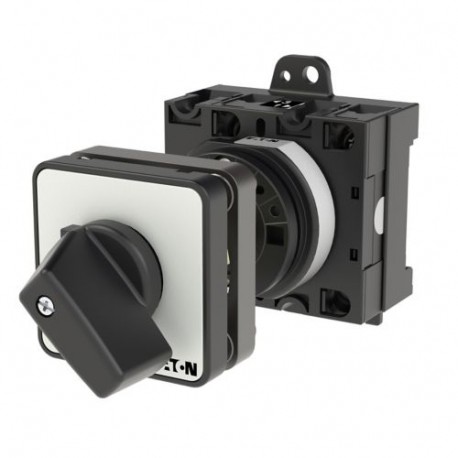

EATON - MOELLER T3-1-8/Z T3-1-8/Z 016926 Y7-16926 EATON ELECTRIC ON-OFF button, Contacts: 2, 32 A, front plate: 0 1, 45 °, momentary,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-8/Z 016926 Y7-16926 EATON ELECTRIC ON-OFF button, Contacts: 2, 32 A, front plate: 0 1, 45 °, momentary,..

T3-1-8/Z

016926

Y7-16926

EATON - MOELLER

1 Pcs.

ON-OFF button, Contacts: 2, 32 A, front plate: 0 >< 1, 45 °, momentary, rear mounting Push-button switch ON-OFF; 2-pole; 32; Plate indicator: 0 >< 1; 45 °; Return; Mounting bottom panel Eaton Moeller® series T3 ON-OFF button, T3, 32 A, rear mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With 0 (Off) position, with spring-return from both directions, 0 >< 1, Design number 8 ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions, 1 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0 >< 1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-1-8/Z on-off button functions as a manual control device to break or complete electrical circuits in industrial machinery and automation enclosures. Panel builders utilize these robust components for safe local power interruption and maintenance control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Accessory ON OFF button
Catalog Number
016926
Model Code
T3-1-8/Z
EAN
4015080169260
Product Length/Depth
121 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.147 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL
CSA-C22.2 No. 94
CE
CSA Class No.: 3211-05
UL File No.: E36332
CSA File No.: 012528
UL Category Control No.: NLRV
VDE 0660
CSA
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
