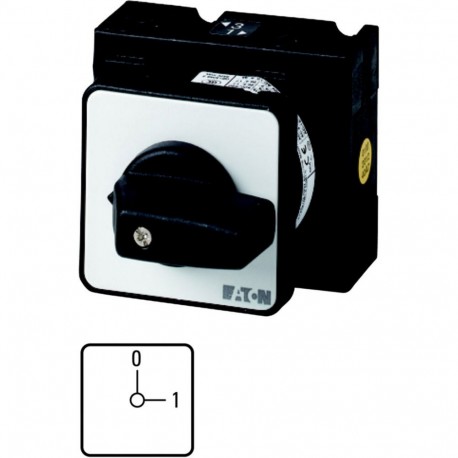

EATON - MOELLER T3-1-79/E T3-1-79/E 016729 Y7-16729 EATON ELECTRIC Universal control switches, Contacts: 2, 32 A, front plate: 0-1, 90.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-1-79/E 016729 Y7-16729 EATON ELECTRIC Universal control switches, Contacts: 2, 32 A, front plate: 0-1, 90..

T3-1-79/E

016729

Y7-16729

EATON - MOELLER

1 Pcs.

Universal control switches, Contacts: 2, 32 A, front plate: 0-1, 90 °, maintained, flush mounting Control switch universal; 2 poles; 32; Plate indicator: 0-1; 90 °; Latch; flush Mount Eaton Moeller® series T3 Universal control switches, T3, 32 A, flush mounting, 1 contact unit(s), Contacts: 2, 90 °, maintained, With 0 (Off) position, 0-1, Design number 79 Universal control switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A universal control switch serves as a reverser mechanism designed to manage motor direction or switch complex control loops within industrial distribution panels. This device ensures safe, manual redirection of electrical pathways during maintenance or operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Universal control switch
Catalog Number
016729
Model Code
T3-1-79/E
EAN
4015080167297
Product Length/Depth
79 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.11 kg
Certifications
IEC/EN 60947
UL Category Control No.: NLRV
IEC/EN 60204
UL
CSA Class No.: 3211-05
VDE 0660
CSA
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CE
UL 60947-4-1
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
