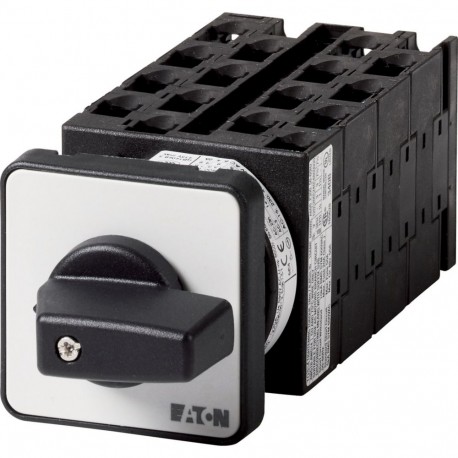

EATON - MOELLER T0-8-8446/E T0-8-8446/E 016147 Y7-16147 EATON ELECTRIC Reversing multi-speed switches, Contacts: 15, 20 A, One tapped wi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-8-8446/E 016147 Y7-16147 EATON ELECTRIC Reversing multi-speed switches, Contacts: 15, 20 A, One tapped wi..

T0-8-8446/E

016147

Y7-16147

EATON - MOELLER

1 Pcs.

Reversing multi-speed switches, Contacts: 15, 20 A, One tapped winding, 2 speeds, front plate: 2-1-Y-0-Y-1-2, 45 °, maintained, flush mounting Switch Multi-speed with reverse; 15-pole; 20a; 1 winding threading; 2 speeds; rating Plate: 2-1 -, And-0-And-1-2; 45 °; Interlock; recessed Mounting Eaton Moeller® series T0 Reversing multi-speed switches, T0, 20 A, flush mounting, 8 contact unit(s), Contacts: 15, 45 °, maintained, With 0 (Off) position, 2-1-Y-0-Y-1-2, Design number 8446 Reversing multi-speed switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 15, Degree of Protection: Front IP65, Design: flush mounting, switching function: One tapped winding, 2 speeds, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-1-Y-0-Y-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A reversing multi-speed switch from Eaton Moeller, part number T0-8-8446/E, directs multi-stage motor operations and rotational direction changes in industrial environments. These robust switching devices allow operators to safely manage complex motor windings, variable speed profiles, and phase transitions on machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Pole switch
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 20 A
  • Rated operation current Ie at AC-3, 400 V: 11.5 A
  • Rated operation power at AC-3, 400 V: 4 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing multi-speed switch
Catalog Number
016147
Model Code
T0-8-8446/E
EAN
4015080161479
Product Length/Depth
143 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.208 kg
Certifications
CSA
CE
IEC/EN 60204
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL
VDE 0660
IEC/EN 60947
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
