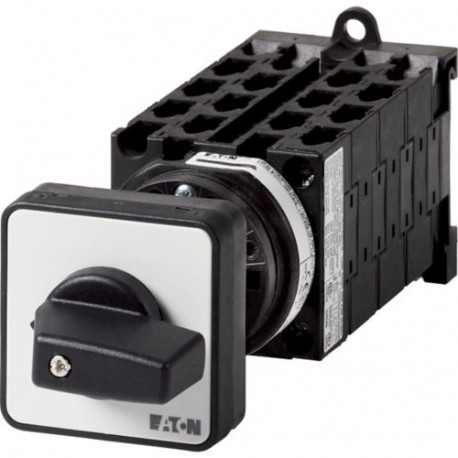

EATON - MOELLER T0-8-15102/Z T0-8-15102/Z 016083 Y7-16083 EATON ELECTRIC Multi-speed switches, Contacts: 16, 20 A, 2 speeds, 2 separate w.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-8-15102/Z 016083 Y7-16083 EATON ELECTRIC Multi-speed switches, Contacts: 16, 20 A, 2 speeds, 2 separate w..

T0-8-15102/Z

016083

Y7-16083

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 16, 20 A, 2 speeds, 2 separate windings, front plate: 1-2-3, 60 °, maintained, rear mounting Switch Multi-speed; 16-pole; 20; 2 speeds; 2 separate windings; rating Plate: 1-2-3; 60 °; Interlock; Mounting bottom panel Eaton Moeller® series T0 Multi-speed switches, T0, 20 A, rear mounting, 8 contact unit(s), Contacts: 16, 60 °, maintained, Without 0 (Off) position, 1-2-3, Design number 15102

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-8-15102/Z is a multi-speed switch designed to handle complex motor winding configurations across multiple velocity levels. Such high-pole switches provide reliable manual control for multi-speed industrial motors deployed in specialized production machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-8-15102/Z
  • Catalogue code: 016083
  • Catalogue title: T0-8-15102/Z 016083 Y7-16083 EATON ELECTRIC Multi-speed switches, Contacts: 16, 20 A, 2 speeds, 2 separate w..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Multi-speed switch Catalog Number 016083 Model Code T0-8-15102/Z EAN 4015080160830 Product Length/Depth 185 mm Product Height 48 mm Product Width 48 mm Product
  • Manufacturer summary: Multi-speed switches, Contacts: 16, 20 A, 2 speeds, 2 separate windings, front plate: 1-2-3, 60 °, maintained, rear mounting Switch Multi-speed; 16-pole; 20; 2 speeds; 2 separate windings; rating Plate: 1-2-3; 60 °; Inte

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Multi-speed switch
Catalog Number
016083
Model Code
T0-8-15102/Z
EAN
4015080160830
Product Length/Depth
185 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.283 kg
Certifications
UL 60947-4-1
CE
IEC/EN 60204
UL File No.: E36332
CSA
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
VDE 0660
UL
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
