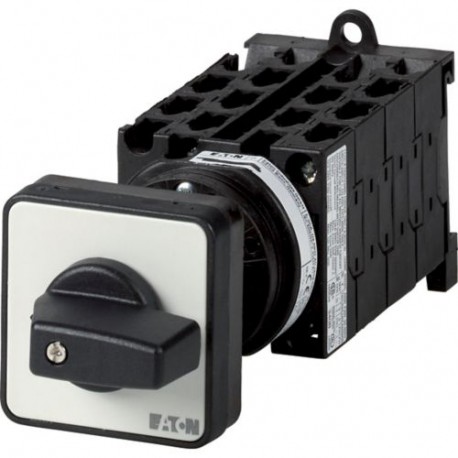

EATON - MOELLER T0-7-15135/Z T0-7-15135/Z 015858 Y7-15858 EATON ELECTRIC Step switches, Contacts: 14, 20 A, front plate: 0-7, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-7-15135/Z 015858 Y7-15858 EATON ELECTRIC Step switches, Contacts: 14, 20 A, front plate: 0-7, 45 °, maint..

T0-7-15135/Z

015858

Y7-15858

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 14, 20 A, front plate: 0-7, 45 °, maintained, rear mounting Switch steps; 14-pole; 20a; rating Plate: 0-7; 45 °; Interlock; Mounting bottom panel Eaton Moeller® series T0 Step switches, T0, 20 A, rear mounting, 7 contact unit(s), Contacts: 14, 45 °, maintained, With 0 (Off) position, 0-7, Design number 15135

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This high-density Eaton Moeller T0-7-15135/Z step switch accommodates extensive multi-circuit routing requirements in large industrial control systems. Technicians rely on these heavy-duty rotary devices to systematically govern numerous operating tiers from a single panel location. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-7-15135/Z
  • Catalogue code: 015858

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
015858
Model Code
T0-7-15135/Z
EAN
4015080158585
Product Length/Depth
175 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.259 kg
Certifications
UL 60947-4-1
CSA
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA Class No.: 3211-05
VDE 0660
CSA-C22.2 No. 94
CE
IEC/EN 60204
UL
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
