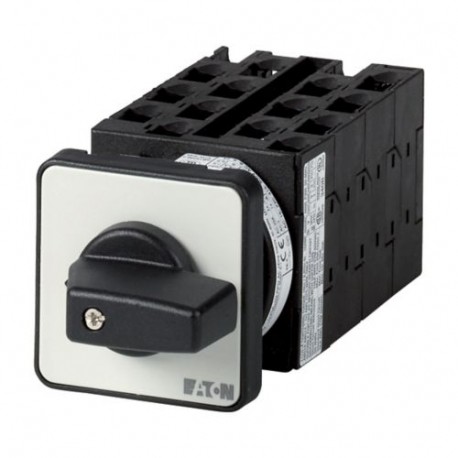

EATON - MOELLER T0-7-15135/E T0-7-15135/E 015854 Y7-15854 EATON ELECTRIC Step switches, Contacts: 14, 20 A, front plate: 0-7, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-7-15135/E 015854 Y7-15854 EATON ELECTRIC Step switches, Contacts: 14, 20 A, front plate: 0-7, 45 °, maint..

T0-7-15135/E

015854

Y7-15854

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 14, 20 A, front plate: 0-7, 45 °, maintained, flush mounting Switch steps; 14-pole; 20a; rating Plate: 0-7; 45 °; Interlock; recessed Mounting Eaton Moeller® series T0 Step switches, T0, 20 A, flush mounting, 7 contact unit(s), Contacts: 14, 45 °, maintained, With 0 (Off) position, 0-7, Design number 15135

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
015854
Model Code
T0-7-15135/E
EAN
4015080158547
Product Length/Depth
133 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.184 kg
Certifications
CSA
CSA File No.: 012528
UL File No.: E36332
VDE 0660
CE
IEC/EN 60204
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
