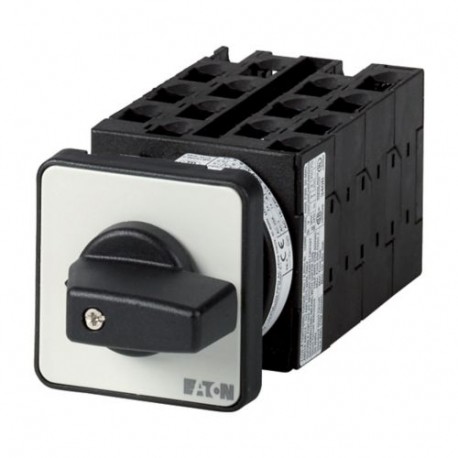

EATON - MOELLER T0-7-132/E T0-7-132/E 015838 Y7-15838 EATON ELECTRIC Multi-speed switches, Contacts: 13, 20 A, 2 speeds, 2 separate win.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-7-132/E 015838 Y7-15838 EATON ELECTRIC Multi-speed switches, Contacts: 13, 20 A, 2 speeds, 2 separate win..

T0-7-132/E

015838

Y7-15838

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 13, 20 A, 2 speeds, 2 separate windings, front plate: 0-1-2-3, 60 °, maintained, flush mounting, SOND 30 Switch Multi-speed; 13-pole; 20; 2 speeds; 2 separate windings; rating Plate: 0-1-2-3; 60 °; Interlock; recessed Mounting; SOND 30 Eaton Moeller® series T0 Multi-speed switches, T0, 20 A, flush mounting, 7 contact unit(s), Contacts: 13, 60 °, maintained, With 0 (Off) position, 0-1-2-3, SOND 30, Design number 132

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Multi-speed switch
Catalog Number
015838
Model Code
T0-7-132/E
EAN
4015080158387
Product Length/Depth
133 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.184 kg
Certifications
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
UL
CSA
CSA File No.: 012528
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA-C22.2 No. 94
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
