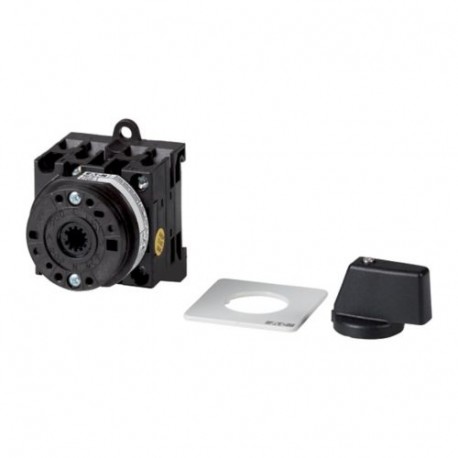

EATON - MOELLER T0-6-SOND*/XZ T0-6-SOND*/XZ 907833 Y7-907833 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, Basic switch, 6 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-SOND*/XZ 907833 Y7-907833 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, Basic switch, 6 ..

T0-6-SOND*/XZ

907833

Y7-907833

EATON - MOELLER

10 Pcs.

Non-standard switch, T0, 20 A, rear mounting, Basic switch, 6 contact unit(s) T0-6-SOND*/XZ Eaton Moeller® series T0 Non-standard switch, T0, 20 A, rear mounting, Basic switch, 6 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T0, Notes: customized version according to form, Design: rear mounting, Basic switch, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-6-SOND*/XZ is a non-standard switch configured for specialized control circuits and custom electrical routing applications. Rotary switches of this classification are typically deployed inside control panels to manually select operating modes or direct multi-pole signal paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Version as switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Non-standard switch
Catalog Number
907833
Model Code
T0-6-SOND*/XZ
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.19 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
