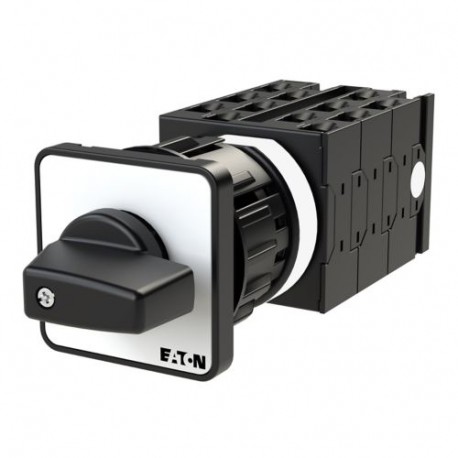

EATON - MOELLER T0-6-15901/EZ T0-6-15901/EZ 015465 Y7-15465 EATON ELECTRIC Reversing star-delta switches, Contacts: 11, 20 A, front plate:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-15901/EZ 015465 Y7-15465 EATON ELECTRIC Reversing star-delta switches, Contacts: 11, 20 A, front plate:..

T0-6-15901/EZ

015465

Y7-15465

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 11, 20 A, front plate: D-Y-0-Y-D, 60 °, maintained, centre mounting Switch Star-delta with reversing; 11-pole; 20a; rating Plate: D-y-0-y-D; 60 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T0 Reversing star-delta switches, T0, 20 A, center mounting, 6 contact unit(s), Contacts: 11, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15901 Turnaround star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 11, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-6-15901/EZ is a specialized reversing star-delta switch built to manage the smooth start-up and directional control of heavy induction motors. By controlling winding configurations during startup, these switches minimize initial inrush current in industrial drive systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Turnaround star-delta switch
Catalog Number
015465
Model Code
T0-6-15901/EZ
EAN
4015080154655
Product Length/Depth
144 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.24 kg
Certifications
UL File No.: E36332
IEC/EN 60204
UL 60947-4-1
UL
CSA-C22.2 No. 94
CSA File No.: 012528
CE
CSA Class No.: 3211-05
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
