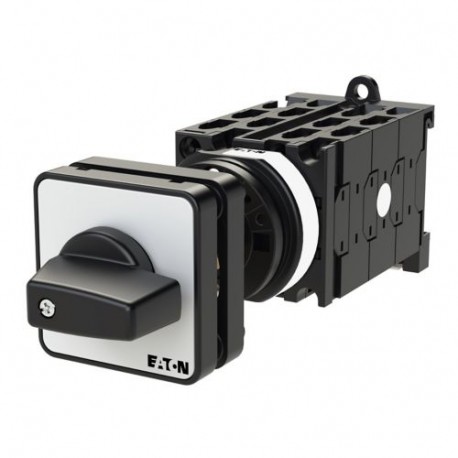

T0-6-15249/Z 015418 Y7-15418 EATON ELECTRIC Step switches, Contacts: 11, 20 A, front plate: 0-11, 30 °, main..
T0-6-15249/Z
015418
Y7-15418
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
T0-6-15249/Z 015418 Y7-15418 EATON ELECTRIC Step switches, Contacts: 11, 20 A, front plate: 0-11, 30 °, main.. provides extensive multi-step switching capabilities for complex industrial control applications requiring numerous discrete operating intervals. High-contact rotary switches allow operators to cycle through up to twelve distinct circuit pathways safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 12
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
UL 60947-4-1
VDE 0660
CSA
CE
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA Class No.: 3211-05
IEC/EN 60947-3
UL
