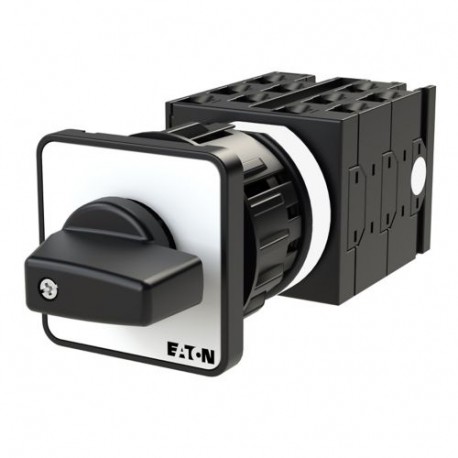

EATON - MOELLER T0-5-15899/EZ T0-5-15899/EZ 014542 Y7-14542 EATON ELECTRIC Star-delta switches, Contacts: 10, 20 A, front plate: 0-Y-D, 60.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15899/EZ 014542 Y7-14542 EATON ELECTRIC Star-delta switches, Contacts: 10, 20 A, front plate: 0-Y-D, 60..

T0-5-15899/EZ

014542

Y7-14542

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 10, 20 A, front plate: 0-Y-D, 60 °, maintained, centre mounting, SOND 28 Switch Star-Triangle; 10-pole; 20a; rating Plate: 0 -, And-D; 60 °; Interlock; recessed Mounting with central fixing; SOND 28 Eaton Moeller® series T0 Star-delta switches, T0, 20 A, center mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 28, Design number 15899 Star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Notes: SOND 28, Contacts: 10, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-5-15899/EZ is a star-delta switch engineered specifically for reduced-voltage motor starting applications. These specialized switches facilitate smooth transitions during motor startup to limit inrush currents in heavy industrial machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Star-delta switch
Catalog Number
014542
Model Code
T0-5-15899/EZ
EAN
4015080145424
Product Length/Depth
134 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.201 kg
Certifications
CSA File No.: 012528
CSA Class No.: 3211-05
UL
UL 60947-4-1
CSA
IEC/EN 60947-3
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60204
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CE
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
