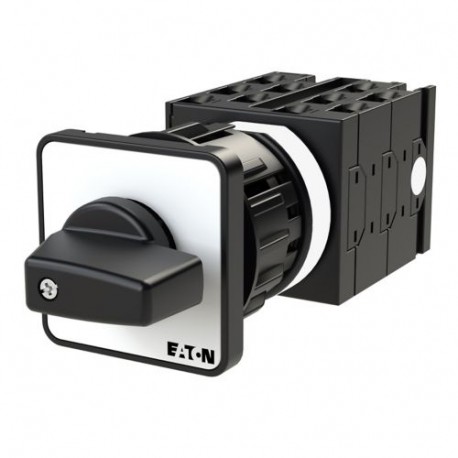

EATON - MOELLER T0-5-15251/EZ T0-5-15251/EZ 014221 Y7-14221 EATON ELECTRIC Step switches, Contacts: 10, 20 A, front plate: 1-10, 30 °, mai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15251/EZ 014221 Y7-14221 EATON ELECTRIC Step switches, Contacts: 10, 20 A, front plate: 1-10, 30 °, mai..

T0-5-15251/EZ

014221

Y7-14221

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 10, 20 A, front plate: 1-10, 30 °, maintained, centre mounting Switch steps; 10-pole; 20a; rating Plate: 1-10; 30 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T0 Step switches, T0, 20 A, centre mounting, 5 contact unit(s), Contacts: 10, 30 °, maintained, Without 0 (Off) position, 1-10, Design number 15251 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 30 °, Switching performance: maintained, Without 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-10

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-5-15251/EZ step switch is a manual control device utilized in industrial machinery and electrical panels for selecting operating stages or multi-step circuits. These components allow operators to cycle through multiple distinct states or circuits safely and reliably during routine operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
014221
Model Code
T0-5-15251/EZ
EAN
4015080142218
Product Length/Depth
134 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.201 kg
Certifications
IEC/EN 60947-3
UL File No.: E36332
IEC/EN 60204
UL
CSA
UL Category Control No.: NLRV
CSA File No.: 012528
UL 60947-4-1
IEC/EN 60947
VDE 0660
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
