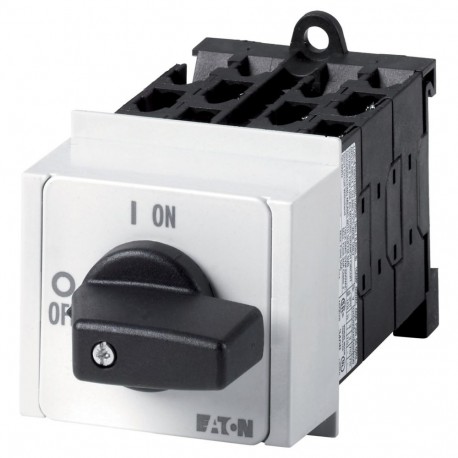

EATON - MOELLER T0-5-15224/IVS T0-5-15224/IVS 014187 Y7-14187 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-9, 30 °, Unin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15224/IVS 014187 Y7-14187 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-9, 30 °, Unin..

T0-5-15224/IVS

014187

Y7-14187

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 20 A, front plate: 0-9, 30 °, Uninterruptible, maintained, service distribution board mounting Switch steps; 9-pole; 20a; rating Plate: 0-9; 30 °; Power; Latching; Mounting in control cabinet Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 5 contact unit(s), Contacts: 9, 30 °, maintained, With 0 (Off) position, 0-9, Design number 15224 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 9, Contact behavior: Uninterruptible, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-5-15224/IVS step switches are utilized in industrial control panels for manual multi-position circuit switching, load selection, and sequential operation management. These rotary devices allow operators to securely cycle through distinct operational modes or configurations within complex machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
014187
Model Code
T0-5-15224/IVS
EAN
4015080141877
Product Length/Depth
120 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.205 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60204
CE
CSA
IEC/EN 60947
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL
CSA File No.: 012528
UL File No.: E36332
CSA Class No.: 3211-05
UL 60947-4-1
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
