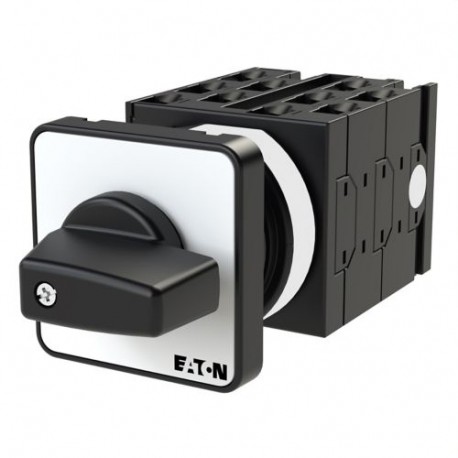

EATON - MOELLER T0-5-15172/E T0-5-15172/E 014150 Y7-14150 EATON ELECTRIC Voltage current measuring switch, Contacts: 10, 20 A, 3 converte.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15172/E 014150 Y7-14150 EATON ELECTRIC Voltage current measuring switch, Contacts: 10, 20 A, 3 converte..

T0-5-15172/E

014150

Y7-14150

EATON - MOELLER

1 Pcs.

Voltage current measuring switch, Contacts: 10, 20 A, 3 converters, front plate: L1/L2- L2/L3 -L3/L1, 90 °, maintained, flush mounting Switch for measurement of voltage and current; 10-pole; 20a; 3 converters; rating Plate: L1/L2 - L2/L3 -L3/L1; 90 °; Latch; flush Mount Eaton Moeller® series T0 Voltage current measuring switch, T0, 20 A, flush mounting, 5 contact unit(s), Contacts: 10, 90 °, maintained, Without 0 (Off) position, L1/L2- L2/L3 -L3/L1, Design number 15172 Cam switch according to IEC/EN60947, size T0, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, center mounting, rear mounting IVS service distribution board mounting.

Automation > Voltmeter selector switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Voltage current measuring switch part number T0-5-15172/E by Eaton Moeller combines multiple circuit paths into a single interface for comprehensive electrical metering. Industrial automation engineers deploy these switches to streamline diagnostic procedures and protect sensitive monitoring equipment from improper connection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Measurement between phases possible (EF001145): Yes
  • With zero (off) position (EF001416): No
  • Device construction (EF008240): Front installation
  • Modular version (EF001126): No
  • With control element (EF001538): Yes
  • Degree of protection (IP) (EF005474): IP65
  • Degree of protection (NEMA) (EF011959): 12

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Voltage current measuring switch
Catalog Number
014150
Model Code
T0-5-15172/E
EAN
4015080141501
Product Length/Depth
114 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.147 kg
Certifications
IEC/EN 60204
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
UL 60947-4-1
CE
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
