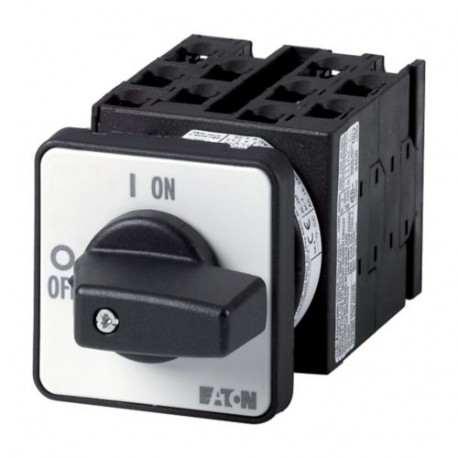

EATON - MOELLER T0-5-15150/E T0-5-15150/E 014145 Y7-14145 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 1-3, 45 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15150/E 014145 Y7-14145 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 1-3, 45 °, mainta..

T0-5-15150/E

014145

Y7-14145

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 20 A, front plate: 1-3, 45 °, maintained, flush mounting Switch steps; 9-pole; 20a; rating Plate: 1-3; 45 °; Interlock; recessed Mounting Eaton Moeller® series T0 Step switches, T0, 20 A, flush mounting, 5 contact unit(s), Contacts: 9, 45 °, maintained, Without 0 (Off) position, 1-3, Design number 15150 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller step switch part number T0-5-15150/E is a rotary control unit used to manually select operating levels, circuits, or sequences in industrial control panels and machinery. These components provide reliable operator interface for multi-speed motors, heating banks, or mode selection within electrical distribution systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
014145
Model Code
T0-5-15150/E
EAN
4015080141457
Product Length/Depth
114 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.147 kg
Certifications
UL
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
IEC/EN 60947
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CE
CSA File No.: 012528
IEC/EN 60204
CSA
UL File No.: E36332
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
