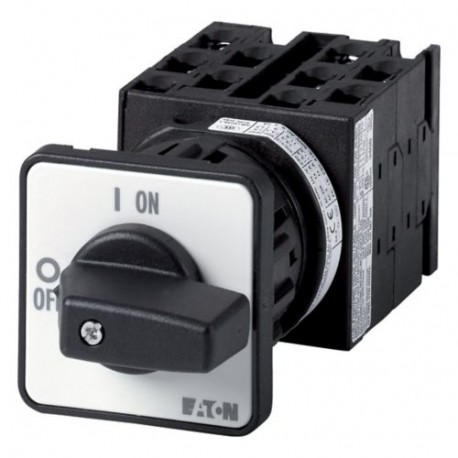

EATON - MOELLER T0-5-15070/EZ T0-5-15070/EZ 014126 Y7-14126 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15070/EZ 014126 Y7-14126 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, maint..

T0-5-15070/EZ

014126

Y7-14126

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, maintained, centre mounting Switch steps; 9-pole; 20a; rating Plate: 0-3; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T0 Step switches, T0, 20 A, centre mounting, 5 contact unit(s), Contacts: 9, 45 °, maintained, With 0 (Off) position, 0-3, Design number 15070

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T0-5-15070/EZ is an industrial step switch designed for manual control and multi-circuit selection within electrical panels and machinery control desks. Operators rely on these selector devices to safely direct sequential operations across various automated processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-5-15070/EZ
  • Catalogue code: 014126
  • Catalogue title: T0-5-15070/EZ 014126 Y7-14126 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, maint..
  • Product description: General specifications Product Name Eaton Moeller® series T0 Step switch Catalog Number 014126 Model Code T0-5-15070/EZ EAN 4015080141266 Product Length/Depth 134 mm Product Height 48 mm Product Width 48 mm Product Weigh
  • Manufacturer summary: Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, maintained, centre mounting Switch steps; 9-pole; 20a; rating Plate: 0-3; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T0 Step swi

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
014126
Model Code
T0-5-15070/EZ
EAN
4015080141266
Product Length/Depth
134 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.201 kg
Certifications
CE
CSA Class No.: 3211-05
IEC/EN 60947-3
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL File No.: E36332
CSA
IEC/EN 60204
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
