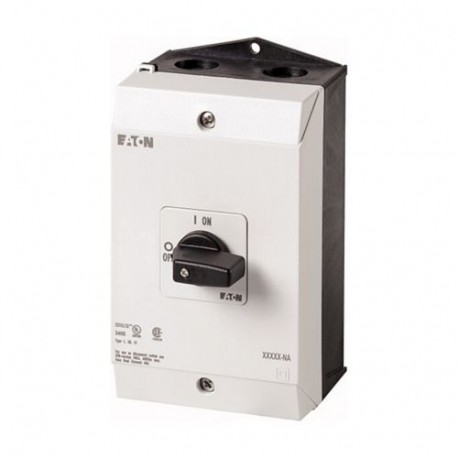

EATON - MOELLER T0-4-8344/I2-NA T0-4-8344/I2-NA 255882 Y7-255882 EATON ELECTRIC On-Off switch, T0, 20 A, surface mounting, 4 contact unit(s).. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8344/I2-NA 255882 Y7-255882 EATON ELECTRIC On-Off switch, T0, 20 A, surface mounting, 4 contact unit(s)..

T0-4-8344/I2-NA

255882

Y7-255882

EATON - MOELLER

1 Pcs.

On-Off switch, T0, 20 A, surface mounting, 4 contact unit(s), 8-pole, with black thumb grip and front plate, UL/CSA T0-4-8344/I2-NA Eaton Moeller® series T0 On-Off switch, T0, 20 A, surface mounting, 4 contact unit(s), 8-pole, with black thumb grip and front plate, UL/CSA On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, Notes: UL/CSA, 8-pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-4-8344/I2-NA On-Off switch, T0, 20 A, surface mounting, 4 contact unit(s).. acts as a multi-pole control and switching solution within industrial automation systems, facilitating manual routing of electrical circuits. Panel designers utilize compact surface-mounted switches to manage auxiliary equipment or control signals locally.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 8

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
255882
Model Code
T0-4-8344/I2-NA
EAN
4015082558826
Product Length/Depth
137 mm
Product Height
122 mm
Product Width
80 mm
Product Weight
0.496 kg
Certifications
CSA Class No.: 3211-07
CSA File No.: 012528
CE
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
UL
VDE 0660
CSA
IEC/EN 60947-3
CSA-C22.2 No. 94
