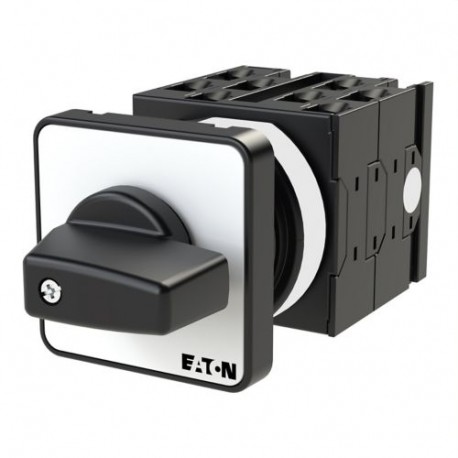

EATON - MOELLER T0-4-8262/E T0-4-8262/E 013977 Y7-13977 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8262/E 013977 Y7-13977 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maintai..

T0-4-8262/E

013977

Y7-13977

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maintained, flush mounting Switch steps; 8-pole; 20a; rating Plate: 0-4; 45 °; Interlock; recessed Mounting Eaton Moeller® series T0 Step switches, T0, 20 A, flush mounting, 4 contact unit(s), Contacts: 8, 45 °, maintained, With 0 (Off) position, 0-4, Design number 8262 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-4

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Step switches from Eaton Moeller provide structured multi-position circuit selection for industrial processes requiring distinct operating stages. They are routinely installed on equipment front plates to allow operators to cycle through multiple predefined electrical states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
013977
Model Code
T0-4-8262/E
EAN
4015080139775
Product Length/Depth
105 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.156 kg
Certifications
IEC/EN 60204
UL
CE
CSA
IEC/EN 60947-3
UL File No.: E36332
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL 60947-4-1
CSA-C22.2 No. 94
UL Category Control No.: NLRV
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
