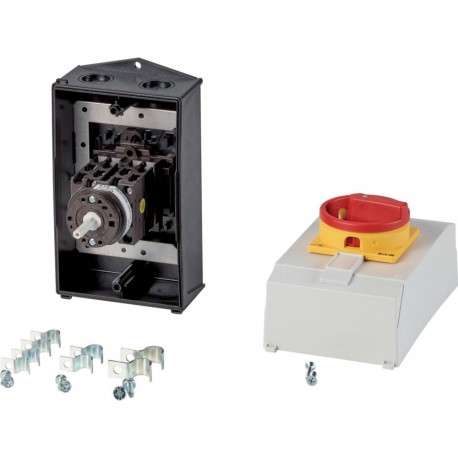

EATON - MOELLER T0-4-15682/I2H/MBS/SVB T0-4-15682/I2H/MBS/SVB 182435 Y7-182435 EATON ELECTRIC Main switch, 6p+1S+1Ö,20A,Emergency-Stop function,90 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15682/I2H/MBS/SVB 182435 Y7-182435 EATON ELECTRIC Main switch, 6p+1S+1Ö,20A,Emergency-Stop function,90 ..

T0-4-15682/I2H/MBS/SVB

182435

Y7-182435

EATON - MOELLER

1 Pcs.

Main switch, 6p+1S+1Ö,20A,Emergency-Stop function,90 °,lockable in the 0 (Off) pos.,surface mounting,hard knockout version,with mounting plate scr. T0-4-15682/I2H/MBS/SVB Eaton Moeller® series T0 Main switch, T0, 20 A, surface mounting, 4 contact unit(s), 6 pole, 1 N/O, 1 N/C, Emergency switching off function, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: hard knockout version, with assembly sheet screen, 6 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T0-4-15682/I2H/MBS/SVB is an Eaton Moeller Main switch, 6p+1S+1Ö,20A,Emergency-Stop function,90 .. engineered to provide secure circuit isolation and control in industrial power distribution panels. Main switches and disconnectors allow technicians to safely cut power to specific machinery or subsections during maintenance operations and emergency situations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
182435
Model Code
T0-4-15682/I2H/MBS/SVB
EAN
4015081773619
Product Length/Depth
136 mm
Product Height
181 mm
Product Width
100 mm
Product Weight
0.6 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
