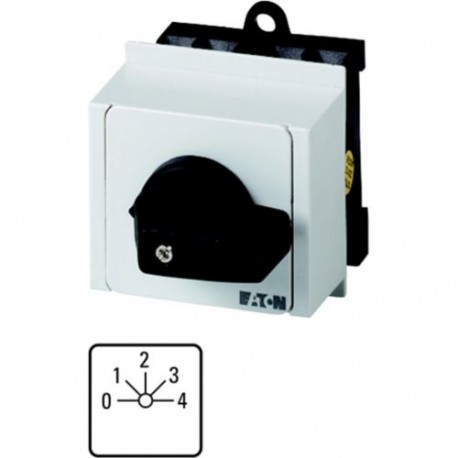

EATON - MOELLER T0-4-15132/IVS T0-4-15132/IVS 013644 Y7-13644 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15132/IVS 013644 Y7-13644 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, main..

T0-4-15132/IVS

013644

Y7-13644

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maintained, service distribution board mounting Switch steps; 8-pole; 20a; rating Plate: 0-4; 45 °; Interlock; Mounting in control cabinet Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 4 contact unit(s), Contacts: 8, 45 °, maintained, With 0 (Off) position, 0-4, Design number 15132

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Packaged as a Eaton Moeller T0-4-15132/IVS step switch, this industrial control component steps electrical inputs across multiple discrete output paths in sequence. Step switches are deployed in complex testing apparatus, lighting systems, and multi-stage process controls.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-4-15132/IVS
  • Catalogue code: 013644

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
013644
Model Code
T0-4-15132/IVS
EAN
4015080136446
Product Length/Depth
111 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.179 kg
Certifications
IEC/EN 60947
CSA
CSA File No.: 012528
UL
UL 60947-4-1
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 94
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
