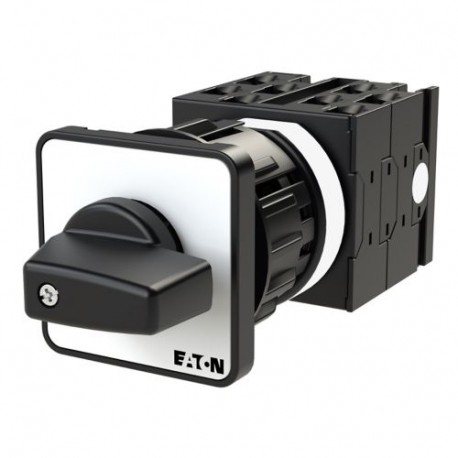

EATON - MOELLER T0-4-15132/EZ T0-4-15132/EZ 013642 Y7-13642 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-15132/EZ 013642 Y7-13642 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maint..

T0-4-15132/EZ

013642

Y7-13642

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 8, 20 A, front plate: 0-4, 45 °, maintained, centre mounting Switch steps; 8-pole; 20a; rating Plate: 0-4; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T0 Step switches, T0, 20 A, centre mounting, 4 contact unit(s), Contacts: 8, 45 °, maintained, With 0 (Off) position, 0-4, Design number 15132 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-4

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A step switch from Eaton Moeller, part number T0-4-15132/EZ, provides multi-step manual selection capabilities for complex industrial control systems. Step switches allow operators to select distinct operational stages, preset speeds, or active circuits sequentially within automation setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
013642
Model Code
T0-4-15132/EZ
EAN
4015080136422
Product Length/Depth
125 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.177 kg
Certifications
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
CE
CSA-C22.2 No. 94
UL
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
VDE 0660
CSA
UL Category Control No.: NLRV
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
