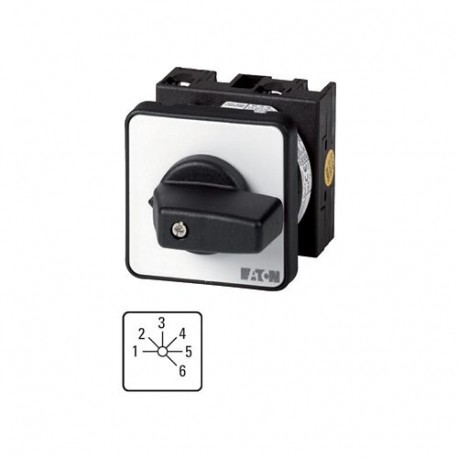

T0-3-180/E 013094 Y7-13094 EATON ELECTRIC Step switches, Contacts: 6, 20 A, front plate: 1-6, 45 °, maintain..
T0-3-180/E
013094
Y7-13094
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part T0-3-180/E is a step switch used to manually navigate through multiple discrete operating levels or circuit configurations. These level switches find frequent application in control desks, test benches, and multi-speed motor setups where operator-guided sequence adjustment is necessary.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 6
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
UL
UL Category Control No.: NLRV
CE
CSA
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA File No.: 012528
UL 60947-4-1
CSA Class No.: 3211-05
