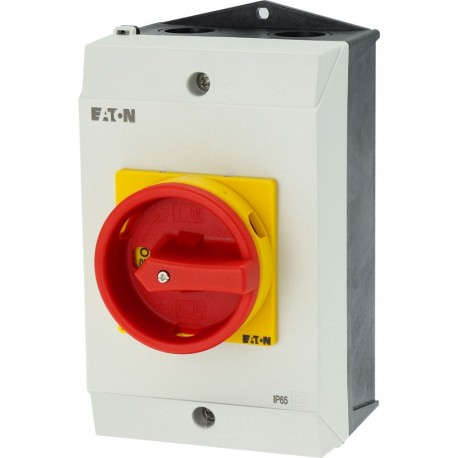

EATON - MOELLER T0-3-15680/I2H/MBS/SVB T0-3-15680/I2H/MBS/SVB 182431 Y7-182431 EATON ELECTRIC Main switch, 3p+N+1S+1Ö,20A,Emergency-Stop function,9.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15680/I2H/MBS/SVB 182431 Y7-182431 EATON ELECTRIC Main switch, 3p+N+1S+1Ö,20A,Emergency-Stop function,9..

T0-3-15680/I2H/MBS/SVB

182431

Y7-182431

EATON - MOELLER

1 Pcs.

Main switch, 3p+N+1S+1Ö,20A,Emergency-Stop function,90°,lockable in the 0 (Off) pos.,surface mounting,hard knockout version,with mounting plate scr. T0-3-15680/I2H/MBS/SVB Eaton Moeller® series T0 Main switch, T0, 20 A, surface mounting, 3 contact unit(s), 3 pole + N, 1 N/O, 1 N/C, Emergency switching off function, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: hard knockout version, with assembly sheet screen, 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller main switch provides reliable operator control for breaking electrical power to machinery during setup or emergency events. These versatile panel-mounted disconnect devices are widely utilized across automation applications to ensure safety compliance and operational control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
182431
Model Code
T0-3-15680/I2H/MBS/SVB
EAN
4015081773572
Product Length/Depth
136 mm
Product Height
181 mm
Product Width
100 mm
Product Weight
0.575 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
