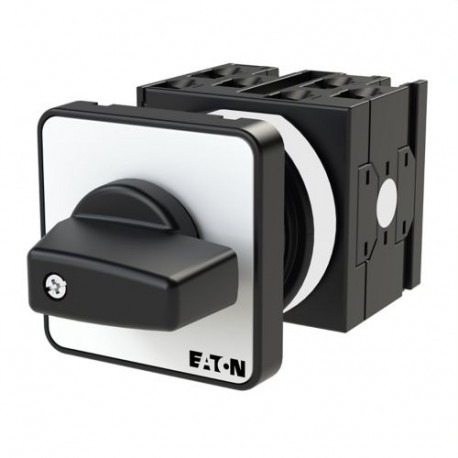

EATON - MOELLER T0-3-15259/E T0-3-15259/E 012985 Y7-12985 EATON ELECTRIC On-Off switch, 3 pole + 2 N/O, 20 A, 90 °, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15259/E 012985 Y7-12985 EATON ELECTRIC On-Off switch, 3 pole + 2 N/O, 20 A, 90 °, flush mounting

T0-3-15259/E

012985

Y7-12985

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + 2 N/O, 20 A, 90 °, flush mounting Disconnect switch ON-OFF; 3-pole + 2 NO; 20 A; 90 °; Mounting Eaton Moeller® series T0 On-Off switch, T0, 20 A, flush mounting, 3 contact unit(s), 3 pole, 2 N/O, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: T0, with black thumb grip and front plate, 3 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

On-off switches provide manual control for energizing and de-energizing electrical circuits, commonly used in industrial control panels and motor management setups. This T0-3-15259/E 012985 Y7-12985 EATON ELECTRIC On-Off switch, 3 pole + 2 N/O, 20 A, 90 °, flush mounting from Eaton Moeller ensures reliable circuit operation with a compact rotary design.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
012985
Model Code
T0-3-15259/E
EAN
4015080129851
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.127 kg
Certifications
VDE 0660
CSA Class No.: 3211-05
UL 60947-4-1
UL File No.: E36332
CSA-C22.2 No. 94
IEC/EN 60947-3
CE
UL Category Control No.: NLRV
IEC/EN 60947
CSA
CSA-C22.2 No. 60947-4-1-14
UL
CSA File No.: 012528
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
