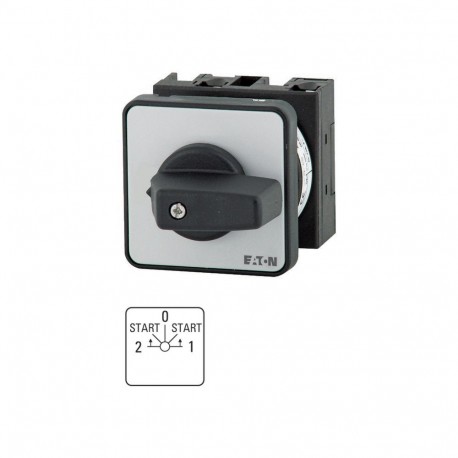

EATON - MOELLER T0-3-15122/E T0-3-15122/E 012929 Y7-12929 EATON ELECTRIC Auxiliary winding switch, Contacts: 6, 20 A, front plate: 2-STAR.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15122/E 012929 Y7-12929 EATON ELECTRIC Auxiliary winding switch, Contacts: 6, 20 A, front plate: 2-STAR..

T0-3-15122/E

012929

Y7-12929

EATON - MOELLER

1 Pcs.

Auxiliary winding switch, Contacts: 6, 20 A, front plate: 2-START>0 Auxiliary winding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2-START>0 Switch auxiliary winding; 6-pole; 20a; rating Plate: 2-START>0 Eaton Moeller® series T0 Auxiliary winding switch, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, 2-START>0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Auxiliary winding switches like the Eaton Moeller T0-3-15122/E manage specialized motor startup routines and auxiliary circuit configurations in industrial drives. Technicians integrate these multi-position rotary components into control panels to sequence electrical windings securely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Auxiliary winding switch
Catalog Number
012929
Model Code
T0-3-15122/E
EAN
4015080129295
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.127 kg
Certifications
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA
UL File No.: E36332
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL
CSA File No.: 012528
CE
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
