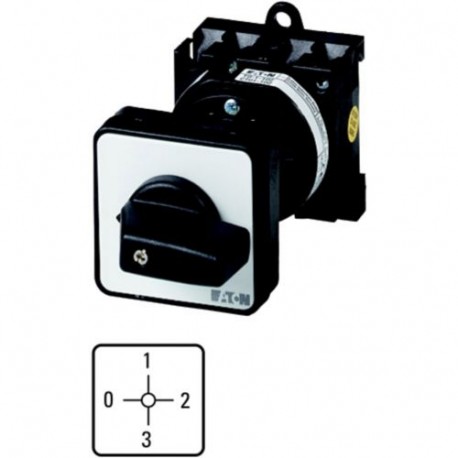

EATON - MOELLER T0-3-15053/Z T0-3-15053/Z 012838 Y7-12838 EATON ELECTRIC Step switches, Contacts: 6, 20 A, front plate: 0-3, 90 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-15053/Z 012838 Y7-12838 EATON ELECTRIC Step switches, Contacts: 6, 20 A, front plate: 0-3, 90 °, mainta..

T0-3-15053/Z

012838

Y7-12838

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 6, 20 A, front plate: 0-3, 90 °, maintained, rear mounting Switch steps; 6-pole; 20a; rating Plate: 0-3; 90 °; Latch; Mounting bottom panel Eaton Moeller® series T0 Step switches, T0, 20 A, rear mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, With 0 (Off) position, 0-3, Design number 15053 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller step switches such as the T0-3-15053/Z 012838 Y7-12838 EATON ELECTRIC allow operators to select distinct multi-stage operational levels in industrial control systems and automated machinery. Level switches regulate progressive electrical states within electrical cabinets.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012838
Model Code
T0-3-15053/Z
EAN
4015080128380
Product Length/Depth
137 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.163 kg
Certifications
UL 60947-4-1
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 94
VDE 0660
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL File No.: E36332
UL Category Control No.: NLRV
CE
IEC/EN 60204
IEC/EN 60947
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
