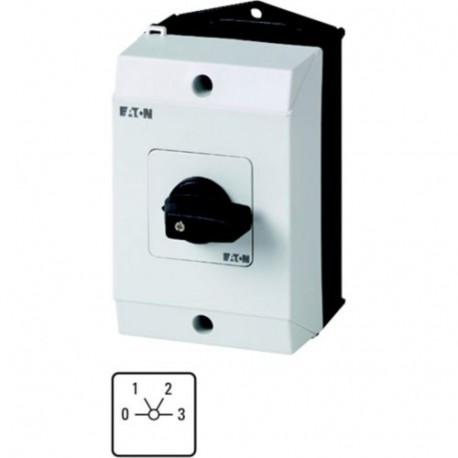

T0-2-95/I1 222470 Y7-222470 EATON ELECTRIC step switch for heating, Contacts: 4, 20 A, front plate: 0-3, 60 ..
T0-2-95/I1
222470
Y7-222470
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A step switch for heating applications allows operators to manually cycle through distinct thermal output levels in commercial and industrial heating systems. This Eaton Moeller T0-2-95/I1 unit is built into a protective housing for safe surface mounting near equipment. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 4
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Surface mounted device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): Yes
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
