T0-2-37/I1 222615 Y7-222615 EATON ELECTRIC Multi-speed switches, Contacts: 4, 20 A, 2 speeds, 2 separate win..
T0-2-37/I1
222615
Y7-222615
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

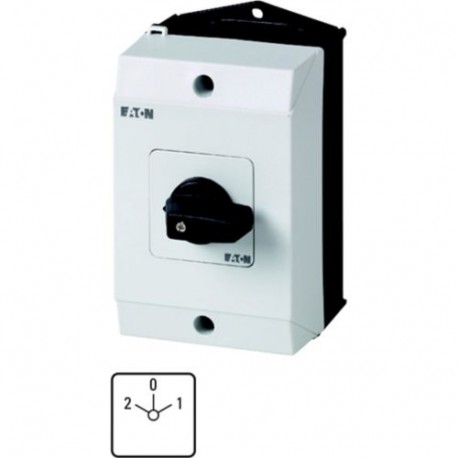

Eaton Moeller T0-2-37/I1 is a multi-speed switch engineered for managing multi-speed electric motor operations within automated industrial machinery. Multi-speed switches allow operators to manually adjust motor velocities directly from an enclosed panel, supporting process optimization across diverse production environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Pole switch
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): Yes
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
EN 60947
EN 60204
VDE
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60204
