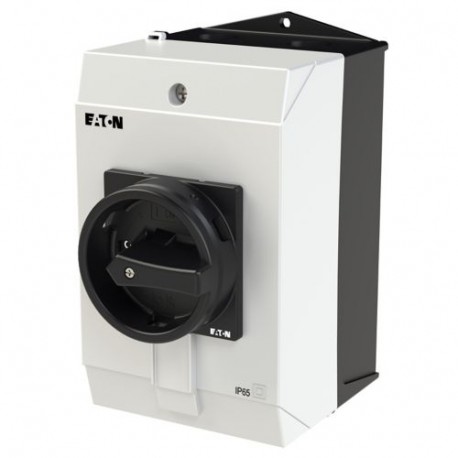

EATON - MOELLER T0-2-1/I2H/MBS/SVB-SW T0-2-1/I2H/MBS/SVB-SW 182426 Y7-182426 EATON ELECTRIC Main switch, 3-pole, 20A, controlled stop function, 90.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-1/I2H/MBS/SVB-SW 182426 Y7-182426 EATON ELECTRIC Main switch, 3-pole, 20A, controlled stop function, 90..

T0-2-1/I2H/MBS/SVB-SW

182426

Y7-182426

EATON - MOELLER

1 Pcs.

Main switch, 3-pole, 20A, controlled stop function, 90 °, surface mounting, hard knockout version, with mounting plate screen T0-2-1/I2H/MBS/SVB-SW Eaton Moeller® series T0 Main switch, T0, 20 A, surface mounting, 2 contact unit(s), 3 pole, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, Notes: hard knockout version, with assembly sheet screen, 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed with integrated control stop functionality, the Eaton Moeller T0-2-1/I2H/MBS/SVB-SW main switch offers reliable manual power interruption for machine building. Operators rely on compact panel-mounted disconnect switches to control power feeds and safeguard automated production machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Main switch
Catalog Number
182426
Model Code
T0-2-1/I2H/MBS/SVB-SW
EAN
4015081773527
Product Length/Depth
136 mm
Product Height
181 mm
Product Width
100 mm
Product Weight
0.55 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
