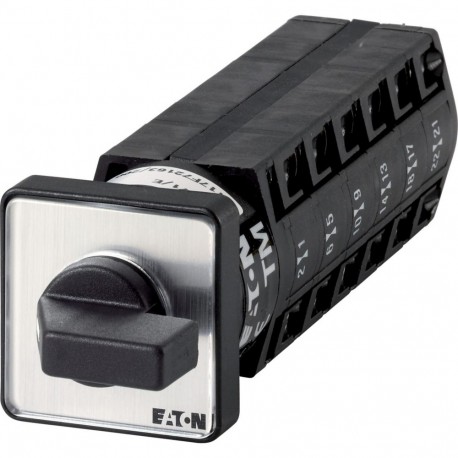

EATON - MOELLER TM-6-8370/E TM-6-8370/E 093861 Y7-93861 EATON ELECTRIC Changeoverswitches, Contacts: 12, 10 A, front plate: 1-2, 60 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-6-8370/E 093861 Y7-93861 EATON ELECTRIC Changeoverswitches, Contacts: 12, 10 A, front plate: 1-2, 60 °, m..

TM-6-8370/E

093861

Y7-93861

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 12, 10 A, front plate: 1-2, 60 °, maintained, flush mounting Switch Switch 12 poles 10 A Indicator plate: 1-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8370 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for versatile control panels, the Eaton Moeller TM-6-8370/E changeover switch directs electrical signals and switches circuits across complex automation setups. Panel builders utilize these devices to manually alternate power paths and operational modes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 6
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 6.6 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
093861
Model Code
TM-6-8370/E
EAN
4015080938613
Product Length/Depth
122 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.082 kg
Certifications
UL
CE
UL File No.: E36332
CSA-C22.2 No. 14-05
IEC/EN 60947
UL Category Control No.: NLRV
CSA
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60947-3
UL report applies to both US and Canada
IEC/EN 60947-5-1
Certified by UL for use in Canada
UL 508
