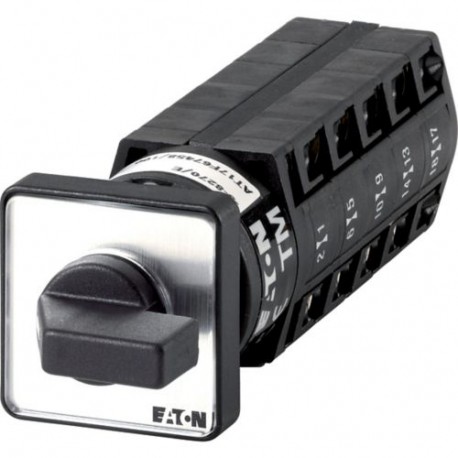

EATON - MOELLER TM-5-8369/E TM-5-8369/E 091488 Y7-91488 EATON ELECTRIC Changeoverswitches, Contacts: 10, 10 A, front plate: 1-2, 60 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-5-8369/E 091488 Y7-91488 EATON ELECTRIC Changeoverswitches, Contacts: 10, 10 A, front plate: 1-2, 60 °, m..

TM-5-8369/E

091488

Y7-91488

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 10, 10 A, front plate: 1-2, 60 °, maintained, flush mounting Switch Commutator 10 poles 10 A Indicator plate: 1-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8369 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches are utilized across industrial control systems to manually toggle power inputs or direct signals across complex multi-pole setups. The Eaton Moeller TM-5-8369/E provides a reliable front-mounted mechanism for switching multiple lines simultaneously.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
091488
Model Code
TM-5-8369/E
EAN
4015080914884
Product Length/Depth
110 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.075 kg
Certifications
Certified by UL for use in Canada
CSA
CSA-C22.2 No. 14-05
CE
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
UL 508
UL Category Control No.: NLRV
UL report applies to both US and Canada
UL File No.: E36332
IEC/EN 60947-5-1
VDE 0660
