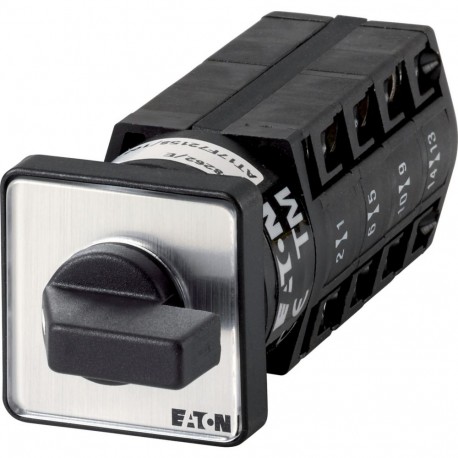

EATON - MOELLER TM-4-8552/E TM-4-8552/E 025046 Y7-25046 EATON ELECTRIC Coding switches, Contacts: 8, 10 A, BCD code 0-9 + complementary,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-4-8552/E 025046 Y7-25046 EATON ELECTRIC Coding switches, Contacts: 8, 10 A, BCD code 0-9 + complementary,..

TM-4-8552/E

025046

Y7-25046

EATON - MOELLER

1 Pcs.

Coding switches, Contacts: 8, 10 A, BCD code 0-9 + complementary, front plate: 0-9, 30 °, maintained, flush mounting Switch Encoder 8 poles 10 A BCD 0-9+ binary code Eaton Moeller® series TM Coding switches, TM, 10 A, flush mounting, 4 contact unit(s), Contacts: 8, 30 °, maintained, With 0 (Off) position, 0-9, Design number 8552 Coding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: flush mounting, switching function: BCD code 0-9 + complementary, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller TM-4-8552/E coding switch provides specialized rotary input capability to encode digital values, select operational parameters, or configure control logic in industrial electronic devices. These switches allow technicians to precisely set hardware addresses and operational routines on circuit boards and control modules.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Coding switch
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
025046
Model Code
TM-4-8552/E
EAN
4015080250463
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.059 kg
Certifications
CE
CSA-C22.2 No. 94
VDE 0660
Certified by UL for use in Canada
IEC/EN 60947-3
IEC/EN 60947-5-1
CSA
CSA-C22.2 No. 14-05
UL
UL report applies to both US and Canada
IEC/EN 60947
UL Category Control No.: NLRV
UL 508
UL File No.: E36332
