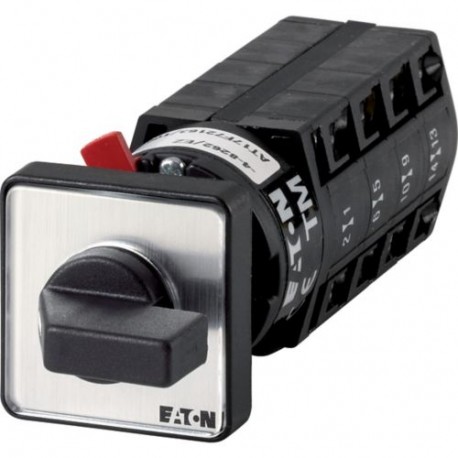

EATON - MOELLER TM-4-8294/EZ TM-4-8294/EZ 046121 Y7-46121 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-0-2, 90 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-4-8294/EZ 046121 Y7-46121 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-0-2, 90 °,..

TM-4-8294/EZ

046121

Y7-46121

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 10 A, front plate: 1-0-2, 90 °, maintained, centre mounting Switch Switch 8 poles 10 A Indicator plate: 1-0-2 90° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 4 contact unit(s), Contacts: 8, 90 °, maintained, With 0 (Off) position, 1-0-2, Design number 8294 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-4-8294/EZ changeover switch provides compact multi-circuit switching for control and instrumentation panels. Miniature changeover switches are implemented where space is limited but reliable manual signal routing is necessary. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 4
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 10 A
  • Rated operation current Ie at AC-3, 400 V: 0 A
  • Rated operation power at AC-3, 400 V: 4.4 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
046121
Model Code
TM-4-8294/EZ
EAN
4015080461210
Product Length/Depth
110 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.063 kg
Certifications
UL Category Control No.: NLRV
UL report applies to both US and Canada
IEC/EN 60947-5-1
UL File No.: E36332
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
UL 508
UL
CSA
IEC/EN 60947
CE
Certified by UL for use in Canada
IEC/EN 60947-3
VDE 0660
