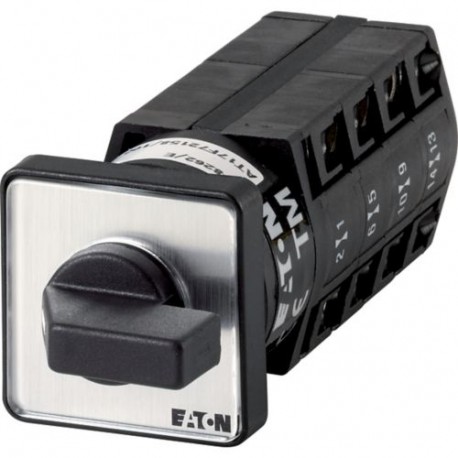

EATON - MOELLER TM-4-8223/E TM-4-8223/E 089115 Y7-89115 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-2, 60 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-4-8223/E 089115 Y7-89115 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-2, 60 °, ma..

TM-4-8223/E

089115

Y7-89115

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 10 A, front plate: 1-2, 60 °, maintained, flush mounting Switch Switch 8 poles 10 A Indicator plate: 1-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8223

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-4-8223/E is a changeover switch designed to redirect electrical circuits and control signals in compact control panels. Panel builders integrate these manual selector switches into machinery to manage operational modes and direct current paths across low-voltage installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: TM-4-8223/E
  • Catalogue code: 089115
  • Catalogue title: TM-4-8223/E 089115 Y7-89115 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-2, 60 °, ma..
  • Product description: General specifications Product Name Eaton Moeller® series TM Changeover switch Catalog Number 089115 Model Code TM-4-8223/E EAN 4015080891154 Product Length/Depth 98 mm Product Height 30 mm Product Width 30 mm Product We
  • Manufacturer summary: Changeoverswitches, Contacts: 8, 10 A, front plate: 1-2, 60 °, maintained, flush mounting Switch Switch 8 poles 10 A Indicator plate: 1-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 4 conta

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
089115
Model Code
TM-4-8223/E
EAN
4015080891154
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.059 kg
Certifications
UL report applies to both US and Canada
UL 508
IEC/EN 60947-3
CSA-C22.2 No. 14-05
CSA
IEC/EN 60947
VDE 0660
UL
UL File No.: E36332
CSA-C22.2 No. 94
Certified by UL for use in Canada
UL Category Control No.: NLRV
CE
IEC/EN 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
