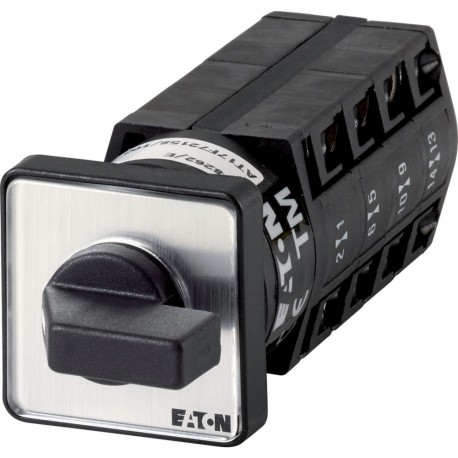

EATON - MOELLER TM-4-8213/E TM-4-8213/E 013180 Y7-13180 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-4-8213/E 013180 Y7-13180 EATON ELECTRIC Changeoverswitches, Contacts: 8, 10 A, front plate: 1-0-2, 60 °, ..

TM-4-8213/E

013180

Y7-13180

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 10 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch Switch 8 poles 10 A Indicator plate: 1-0-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8213 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches direct electrical current between multiple circuits or operational pathways in complex automation panels and machinery controls. Operators rely on these mechanical switches for secure source selection and manual circuit routing during maintenance or routine operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 4.4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
013180
Model Code
TM-4-8213/E
EAN
4015080131809
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.057 kg
Certifications
Certified by UL for use in Canada
IEC/EN 60947
CE
UL
VDE 0660
UL Category Control No.: NLRV
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA
IEC/EN 60947-5-1
UL 508
UL File No.: E36332
