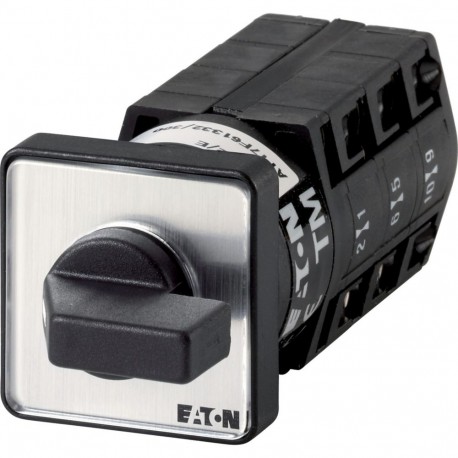

EATON - MOELLER TM-3-8401/E TM-3-8401/E 015554 Y7-15554 EATON ELECTRIC Reversing switches, Contacts: 5, 10 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-8401/E 015554 Y7-15554 EATON ELECTRIC Reversing switches, Contacts: 5, 10 A, front plate: 1-0-2, 60 °, ..

TM-3-8401/E

015554

Y7-15554

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 5, 10 A, front plate: 1-0-2, 60 °, maintained, flush mounting 5-Pole Inverter Switch 10 A Indicator Plate: 1-0-2 60° Eaton Moeller® series TM Reversing switches, TM, 10 A, flush mounting, 3 contact unit(s), Contacts: 5, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8401 Reversing switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-3-8401/E is a compact reversing switch designed to govern motor direction and operational modes in panel installations. Miniature rotary cam switches provide space-saving manual circuit control for automation control panels and light industrial equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reversing switch
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 10 A
  • Rated operation current Ie at AC-3, 400 V: 0 A
  • Rated operation power at AC-3, 400 V: 3.3 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
015554
Model Code
TM-3-8401/E
EAN
4015080155546
Product Length/Depth
86 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.047 kg
Certifications
CSA-C22.2 No. 94
UL report applies to both US and Canada
IEC/EN 60947-5-1
IEC/EN 60947
CE
CSA
VDE 0660
CSA-C22.2 No. 14-05
UL 508
Certified by UL for use in Canada
UL File No.: E36332
IEC/EN 60947-3
UL Category Control No.: NLRV
UL
