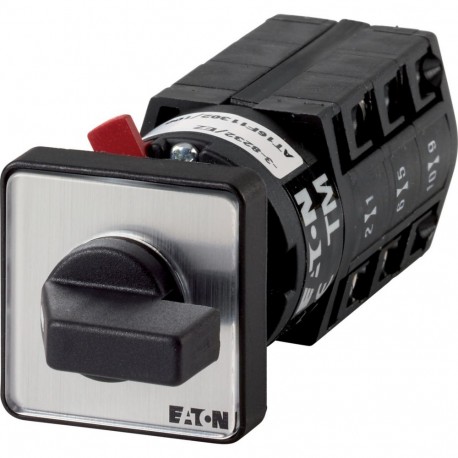

EATON - MOELLER TM-3-8326/EZ TM-3-8326/EZ 045499 Y7-45499 EATON ELECTRIC ON-OFF switches, Contacts: 6, 10 A, front plate: 0-1, 90 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-8326/EZ 045499 Y7-45499 EATON ELECTRIC ON-OFF switches, Contacts: 6, 10 A, front plate: 0-1, 90 °, main..

TM-3-8326/EZ

045499

Y7-45499

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 6, 10 A, front plate: 0-1, 90 °, maintained, centre mounting ON-OFF 6-pole disconnect switch 10 A Faceplate 0-1 90° Eaton Moeller® series TM ON-OFF switches, TM, 10 A, center mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, With 0 (Off) position, 0-1, Design number 8326 On-Off switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM On-off switch
Catalog Number
045499
Model Code
TM-3-8326/EZ
EAN
4015080454991
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.053 kg
Certifications
UL
UL 508
UL File No.: E36332
CE
IEC/EN 60947-3
CSA
IEC/EN 60947-5-1
Certified by UL for use in Canada
UL report applies to both US and Canada
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94

ETIM for 045499 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 10 A
Rated permanent current at AC-21, 400 V (EF009165) 0 A
Rated operation power at AC-3, 400 V (EF001364) 0 kW
Rated short-time withstand current lcw (EF007050) 0 kA
Rated operation power at AC-23, 400 V (EF007027) 3 kW
Switching power at 400 V (EF009166) 0 kW
Conditioned rated short-circuit current Iq (EF001444) 0 kA
Number of poles (EF001391) 6
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 30 mm
Height (EF000040) 30 mm
Depth (EF000049) 98 mm

Product Datasheet
