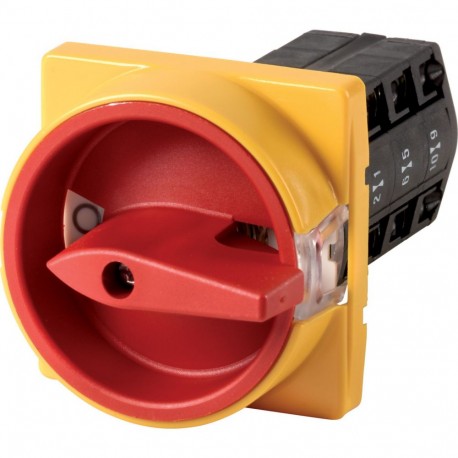

Control circuit switches, Emergency-Stop function, Contacts: 6, 10 A, 90 °, flush mounting, up to 250 V AC per contact Control switch. 6 poles. 10 A. Faceplate 0-1. 90 °. Assembly Eaton Moeller® series TM Control circuit switches, TM, 10 A, flush mounting, 3 contact unit(s), Contacts: 6, 90 °, up to 250 V AC per contact, Design number 8326 Control circuit isolator, Product range: Control switches, Part group reference: TM, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: up to 250 V AC per contact, Contacts: 6, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Control circuit switches, Emergency-Stop function, Contacts: .. designated as TM-3-8326/E/SVB by Eaton Moeller provide operator-initiated machinery shutdowns for safety compliance. These components are commonly mounted on control panels to instantly interrupt machine operations during hazardous conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 10 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Rated operation power at AC-23, 400 V (EF007027): 3 kW
  • Switching power at 400 V (EF009166): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA
  • Number of poles (EF001391): 6
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory Control circuit isolator
Catalog Number
045498
Model Code
TM-3-8326/E/SVB
EAN
4015080454984
Product Length/Depth
101 mm
Product Height
48 mm
Product Width
30 mm
Product Weight
0.068 kg
Certifications
Certified by UL for use in Canada
CSA
UL Category Control No.: NLRV
UL 508
CE
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL
UL File No.: E36332
IEC/EN 60947-5-1
UL report applies to both US and Canada
IEC/EN 60947
Catalog Notes
up to 250 V AC per contact

Product Datasheet
