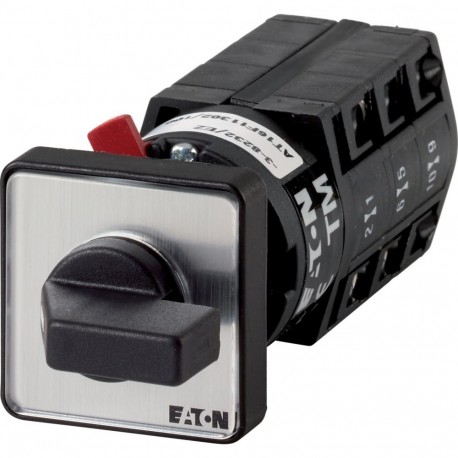

EATON - MOELLER TM-3-8299/EZ TM-3-8299/EZ 045497 Y7-45497 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: 1-0-2, 90 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-8299/EZ 045497 Y7-45497 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: 1-0-2, 90 °,..

TM-3-8299/EZ

045497

Y7-45497

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 10 A, front plate: 1-0-2, 90 °, maintained, centre mounting Switch Switch 6 poles 10 A Indicator plate: 1-0-2 90° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, With 0 (Off) position, 1-0-2, Design number 8299 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
045497
Model Code
TM-3-8299/EZ
EAN
4015080454977
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.053 kg
Certifications
UL report applies to both US and Canada
VDE 0660
CE
CSA-C22.2 No. 14-05
UL File No.: E36332
UL 508
IEC/EN 60947-5-1
CSA-C22.2 No. 94
UL
IEC/EN 60947
UL Category Control No.: NLRV
IEC/EN 60947-3
Certified by UL for use in Canada
CSA

ETIM for 045497 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 10 A
Rated operation current Ie at AC-3, 400 V (EF001392) 0 A
Rated operation power at AC-3, 400 V (EF001364) 3.3 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
