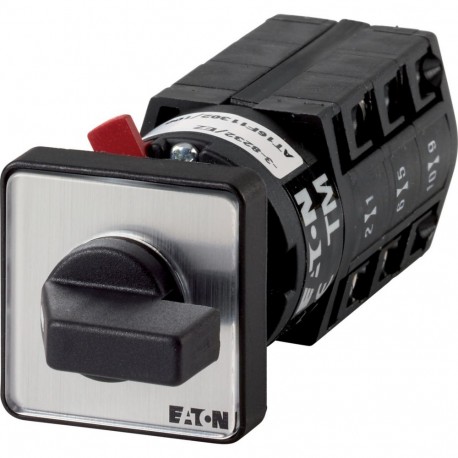

EATON - MOELLER TM-3-8228/EZ TM-3-8228/EZ 045494 Y7-45494 EATON ELECTRIC Reversing switches, Contacts: 5, 10 A, front plate: 1 0 2, 30 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-8228/EZ 045494 Y7-45494 EATON ELECTRIC Reversing switches, Contacts: 5, 10 A, front plate: 1 0 2, 30 °,..

TM-3-8228/EZ

045494

Y7-45494

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 5, 10 A, front plate: 1>0<2, 30 °, momentary, centre mounting Inverter switch 5 poles 10 A Indicator plate: 1>0<2 30° Eaton Moeller® series TM Reversing switches, TM, 10 A, center mounting, 3 contact unit(s), Contacts: 5, 30 °, momentary, With 0 (Off) position, 1>0<2, Design number 8228 Reversing switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 30 °, Switching performance: momentary, With 0 (Off) position, front plate: 1>0<2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller reversing switch, part number TM-3-8228/EZ, provides manual control for altering the rotational direction of electric motors by reversing the phase sequence. Such switches are standard integration elements in machine tools and conveyor systems requiring bidirectional movement.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 3.3 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
045494
Model Code
TM-3-8228/EZ
EAN
4015080454946
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.053 kg
Certifications
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL File No.: E36332
VDE 0660
UL
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
IEC/EN 60947
CE
Certified by UL for use in Canada
CSA
IEC/EN 60947-5-1
IEC/EN 60947-3
UL 508

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
