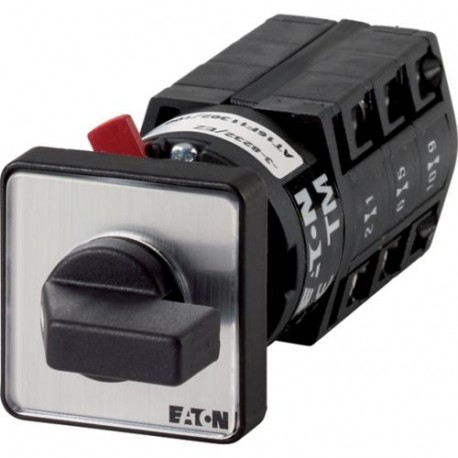

TM-3-8222/EZ 045493 Y7-45493 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: 1-2, 60 °, m..
TM-3-8222/EZ
045493
Y7-45493
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for compact control environments, the Eaton Moeller changeoverswitch (TM-3-8222/EZ) enables manual switching of electrical circuits within machinery and control panels. These robust rotary devices facilitate reliable source selection and operational mode adjustments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 10 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 3.3 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
IEC/EN 60947-5-1
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL report applies to both US and Canada
Certified by UL for use in Canada
CSA
IEC/EN 60947-3
VDE 0660
UL
UL File No.: E36332
CSA-C22.2 No. 14-05
IEC/EN 60947
UL 508
