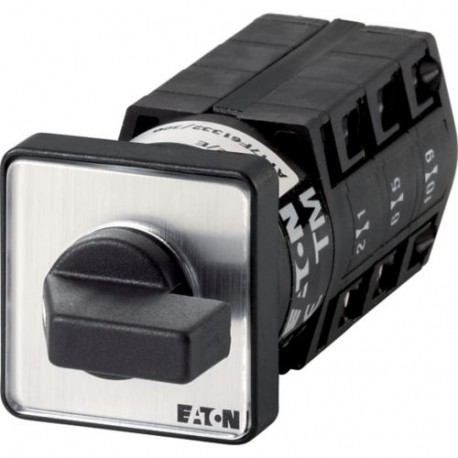

TM-3-8222/E 086742 Y7-86742 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: 1-2, 60 °, ma..

TM-3-8222/E

086742

Y7-86742

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 10 A, front plate: 1-2, 60 °, maintained, flush mounting Switch Switch; 6 poles; 10 A; Indicator plate: 1-2; 60 °; Eaton Moeller® series TM Changeoverswitches, TM, 10 A, flush mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, Without 0 (Off) position, 1-2, Design number 8222 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller TM-3-8222/E is a changeover switch designed for front-panel integration to redirect electrical pathways in control systems. Technicians deploy these mechanical switching devices to alternate active circuits without interrupting overall panel logic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 3.3 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
086742
Model Code
TM-3-8222/E
EAN
4015080867425
Product Length/Depth
86 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.049 kg
Certifications
CSA-C22.2 No. 14-05
UL File No.: E36332
CSA
CE
UL report applies to both US and Canada
IEC/EN 60947-3
IEC/EN 60947
UL Category Control No.: NLRV
Certified by UL for use in Canada
CSA-C22.2 No. 94
UL
UL 508
IEC/EN 60947-5-1
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
