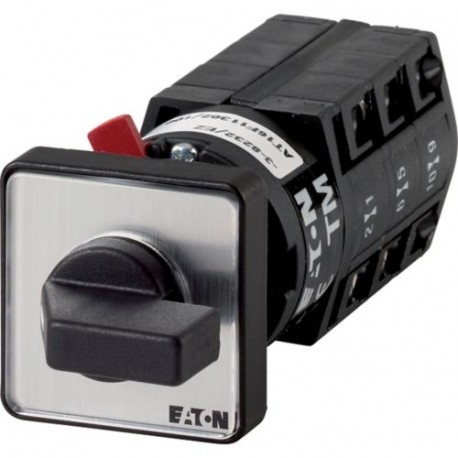

EATON - MOELLER TM-3-8212/EZ TM-3-8212/EZ 045491 Y7-45491 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-8212/EZ 045491 Y7-45491 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: 1-0-2, 60 °,..

TM-3-8212/EZ

045491

Y7-45491

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 10 A, front plate: 1-0-2, 60 °, maintained, centre mounting Switch 6-pole 10 A Indicator plate: 1-0-2 60° Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212 Changeover switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitch TM-3-8212/EZ manufactured by Eaton Moeller functions as a manual control mechanism used in electrical installations to redirect circuits, select alternate signal paths, or manage power supplies across different operational modes. Panel builders commonly apply these multi-position switches to safely isolate or alternate loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 3.3 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
045491
Model Code
TM-3-8212/EZ
EAN
4015080454915
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.056 kg
Certifications
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA
IEC/EN 60947-5-1
IEC/EN 60947-3
Certified by UL for use in Canada
CE
CSA-C22.2 No. 14-05
UL
UL 508
UL report applies to both US and Canada
IEC/EN 60947
VDE 0660
