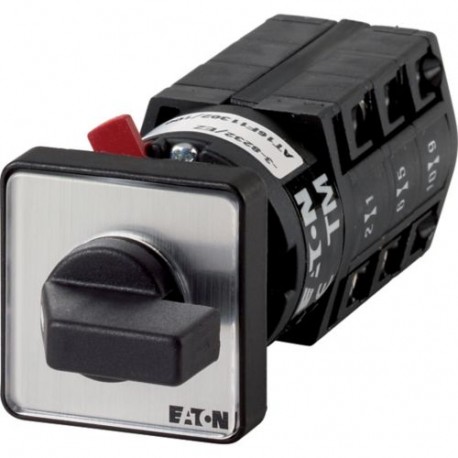

EATON - MOELLER TM-3-15433/EZ TM-3-15433/EZ 045490 Y7-45490 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: HAND-0-AUTO.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-3-15433/EZ 045490 Y7-45490 EATON ELECTRIC Changeoverswitches, Contacts: 6, 10 A, front plate: HAND-0-AUTO..

TM-3-15433/EZ

045490

Y7-45490

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 10 A, front plate: HAND-0-AUTO, 60 °, maintained, centre mounting Switch 6-pole switch 10 A Indicator plate: HAND-0-AUTO 60 Eaton Moeller® series TM Changeoverswitches, TM, 10 A, centre mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15433 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller TM-3-15433/EZ is a changeoverswitch designed for manual control duties within electrical distribution systems. Engineers utilize changeoverswitches to toggle control logic or power pathways between distinct sources, such as manual override and automated operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Changeover switch
Catalog Number
045490
Model Code
TM-3-15433/EZ
EAN
4015080454908
Product Length/Depth
98 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.056 kg
Certifications
Certified by UL for use in Canada
IEC/EN 60947
IEC/EN 60947-5-1
VDE 0660
UL
CE
UL report applies to both US and Canada
UL File No.: E36332
CSA
CSA-C22.2 No. 14-05
UL 508
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA-C22.2 No. 94
